Diffusion in spherical coordinates
When working with 1D profiles of major elements in garnet, it is often better to consider spherical coordinates. This approximates a garnet grain as a sphere and allows the change in volume relative to the distance from the core to be taken into account.
In DiffusionGarnet, spherical coordinates are as easy to use as 1D Cartesian coordinates. To illustrate this, we will compare the diffusion of a core-rim profile using the 2 coordinate systems. We will follow the same procedure as in the 1D diffusion tutorial.
First we will load the data of the core-rim profile from the Spherical examples section, which should be in the same folder as your current session:
using DiffusionGarnet
using DelimitedFiles
data = DelimitedFiles.readdlm("Data_Grt_Sph.txt", '\t', '\n', header=true)[1]
Mg0 = data[:, 4]
Fe0 = data[:, 2]
Mn0 = data[:, 3]
Ca0 = data[:, 5]
distance = data[:, 1]
Lx = Lr = (data[end,1] - data[1,1])u"µm"
tfinal = 15u"Myr"
We can visualize our data:
using Plots
l = @layout [a ; b]
p1 = plot(distance, Fe0, label="Fe initial", linestyle = :dash, linewidth=1, dpi=200, title = "Initial conditions", legend=:outerbottomright, linecolor=1,xlabel = "Distance (µm)", ylabel="Molar fraction")
p2 = plot(distance, Mg0, label="Mg initial", linestyle = :dash, linewidth=1, dpi=200,legend=:outerbottomright,linecolor=2,xlabel = "Distance (µm)")
p2 = plot!(distance, Mn0, label="Mn initial", linestyle = :dash, linewidth=1, linecolor=3)
p2 = plot!(distance, Ca0, label="Ca initial", linestyle = :dash, linewidth=1, linecolor=4, ylabel="Molar fraction")
plot(p1, p2, layout = l)

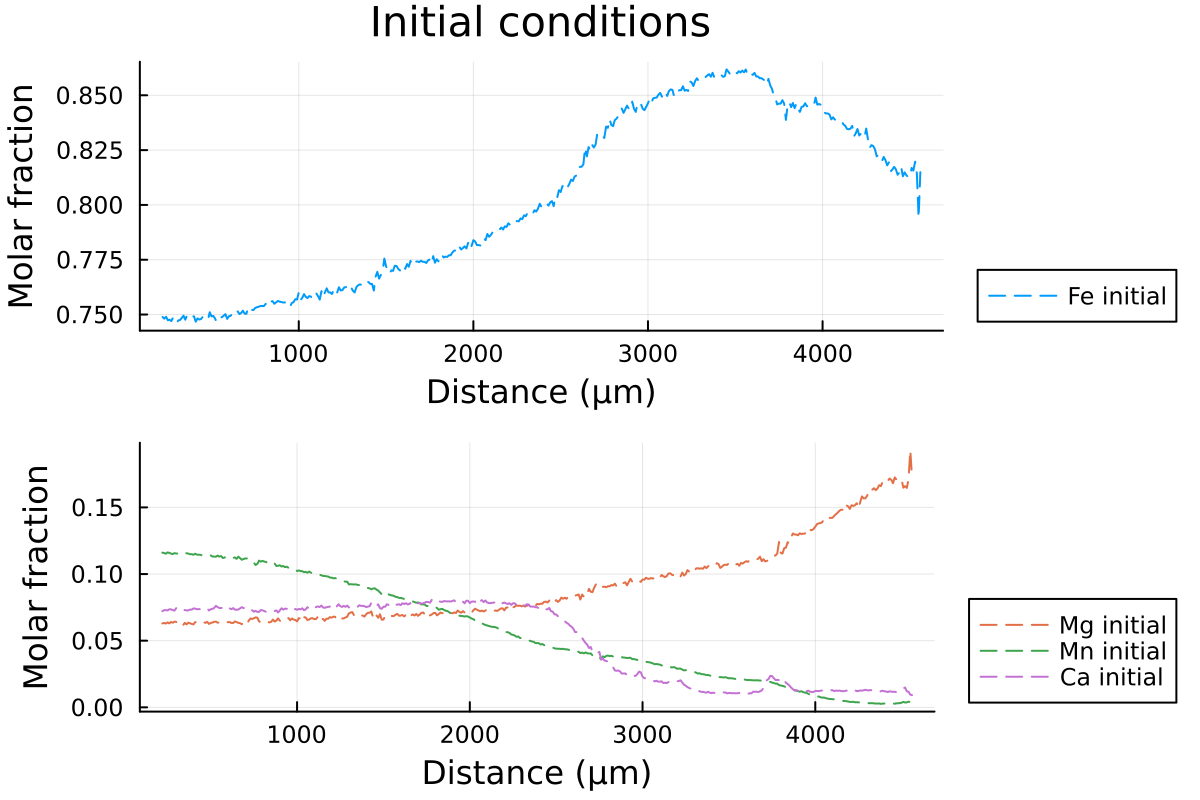

which outputs:
Then, we can define our initial conditions, both for the spherical and 1D Cartesian coordinates.
ICSph = InitialConditionsSpherical(Mg0, Fe0, Mn0, Lr, tfinal)
IC1D = InitialConditions1D(Mg0, Fe0, Mn0, Lx, tfinal)
# define the pressure and temperature conditions of diffusion
T = 900u"°C"
P = 0.6u"GPa"
DomainSph = Domain(ICSph, T, P)
Domain1D = Domain(IC1D, T, P; bc_neumann = (true, false))
InitialConditionsSpherical
always assumes that the core of the profile is on the left and the edge is on the right side.
We use bc_neumann
in Domain
to indicate that a homogeneous Neumann boundary must be ensured on the left side of the 1D profile to simulate the core of the garnet grain.
We can then use the function simulate()
to solve our system:
# solve the problem using DifferentialEquations.jl
sol_sph = simulate(DomainSph)
sol_1D = simulate(Domain1D)
and compare the 2 solutions:
anim = @animate for i = LinRange(0, sol_sph.t[end], 100)
l = @layout [a ; b]
p1 = plot(distance, Fe0, label="Fe initial", linestyle = :dash, linewidth=1, dpi=200, title = "Total Time = $(round(i;digits=2)) Ma", legend=:outerbottomright, linecolor=1,xlabel = "Distance (µm)")
p1 = plot!(distance, sol_sph(i)[:,2], label="Fe Sph",linecolor=1, linewidth=1)
p1 = plot!(distance, sol_1D(i)[:,2], label="Fe 1D",linecolor=5, linewidth=1)
p2 = plot(distance, Mg0, label="Mg initial", linestyle = :dash, linewidth=1, dpi=200,legend=:outerbottomright,linecolor=2,xlabel = "Distance (µm)")
p2 = plot!(distance, Mn0, label="Mn initial", linestyle = :dash, linewidth=1, linecolor=3)
p2 = plot!(distance, Ca0, label="Ca initial", linestyle = :dash, linewidth=1, linecolor=4)
p2 = plot!(distance, sol_sph(i)[:,1], label="Mg Sph",linecolor=2, linewidth=1)
p2 = plot!(distance, sol_1D(i)[:,1], label="Mg 1D",linecolor=6, linewidth=1)
p2 = plot!(distance, sol_sph(i)[:,3], label="Mn Sph", linecolor=3, linewidth=1)
p2 = plot!(distance, sol_1D(i)[:,3], label="Mn 1D", linecolor=7, linewidth=1)
p2 = plot!(distance, 1 .- sol_sph(i)[:,1] .- sol_sph(i)[:,2] .- sol_sph(i)[:,3], label="Ca Sph", linecolor=4, linewidth=1)
p2 = plot!(distance, 1 .- sol_sph(i)[:,1] .- sol_sph(i)[:,2] .- sol_sph(i)[:,3], label="Ca 1D", linecolor=8, linewidth=1)
plot(p1, p2, layout = l)
end every 1
println("Now, generating the gif...")
gif(anim, "Grt_Spherical+1D.gif", fps = 7)
println("...Done!")

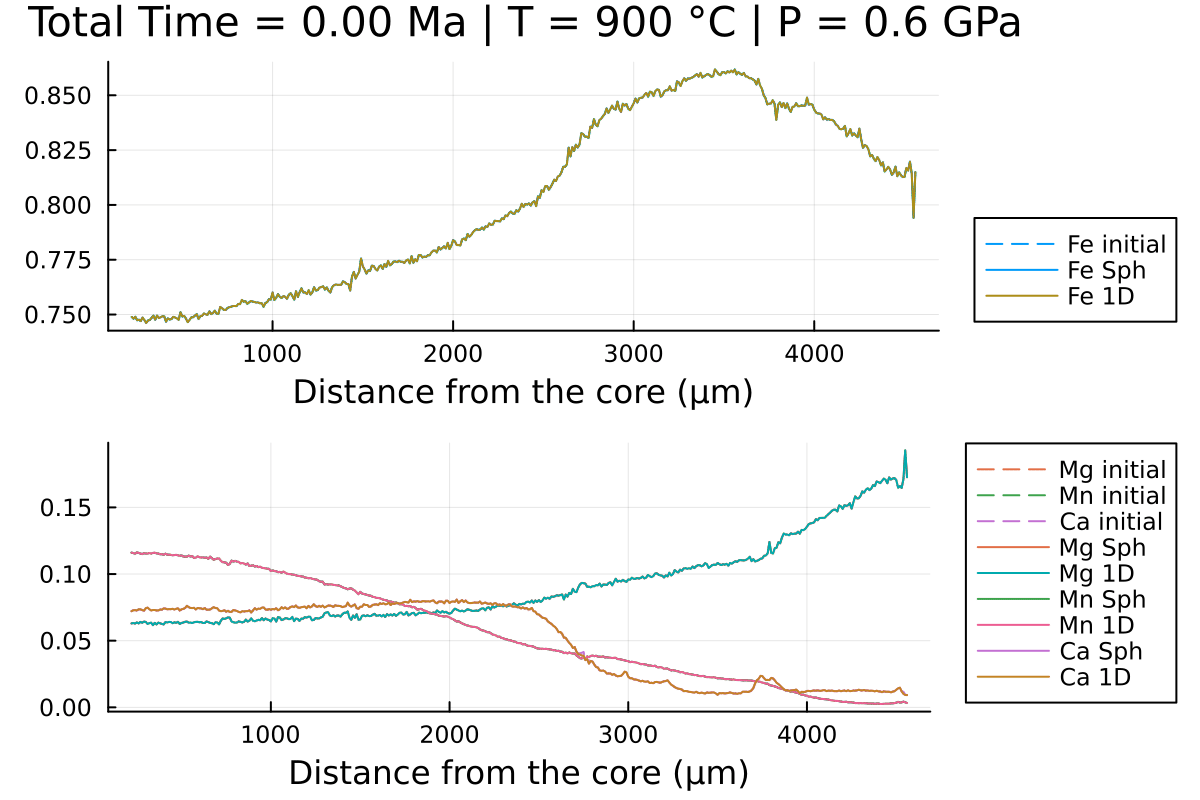

With the resulting gif:
It shows that using spherical coordinates makes the garnet diffuse faster. Using 1D Cartesian coordinates can overestimate the equilibration time.
